How to Stop a Bathtub Overflow Drain From Leaking

A bathtub overflow drain is the round plate on the wall of the tub, a few inches below the rim. Most days you never think about it. Then one day you fill the tub a little high, and water starts dripping into the ceiling below. Or you notice a stain spreading on the drywall under the bathroom. The overflow drain is supposed to catch extra water and send it down the drain. When its seal fails, water escapes behind the tub instead. The fix is usually a new rubber gasket and about half an hour of work. Here is what to know about bathtub overflow drain before you start.

Bathtub Overflow Drain: How the Overflow Drain Works

When it comes to bathtub overflow drain, getting the details right makes all the difference.

Many homeowners find that bathtub overflow drain is easier than they expected once they know the basics.

The overflow is a backup path. If the water level rises too high, it flows through the overflow opening, down a short pipe, and into the main drain. The visible part is the cover plate with slots or holes in it. Behind the tub wall sits the overflow pipe with a rubber gasket pressed against the back of the tub. The cover plate screws pull the pipe tight and squeeze the gasket to make a watertight seal.

When that gasket gets old, it hardens, shrinks, or cracks. Then water running into the overflow slips past the seal and lands inside the wall or on the floor below. A loose cover plate causes the same trouble, because the gasket never gets squeezed tight enough to seal.

Signs the Overflow Is the Leak Source

Many homeowners find that bathtub overflow drain is easier than they expected once they know the basics.

The key to bathtub overflow drain is choosing the right approach for your space and budget.

Not every bathroom leak comes from the overflow. Here is how to tell. The leak only shows up when the tub is filled high, near or above the overflow opening. Showers and shallow baths cause no leak at all. You might see water stains on the ceiling below the tub, or damp drywall on the wall behind it. Sometimes you can hear dripping inside the wall after a deep bath.

A quick test helps. Fill the tub to just below the overflow and let it sit. If nothing leaks, raise the water until it starts flowing into the overflow. If dripping starts then, you have found your culprit. Dry everything well after the test so you do not leave moisture in the wall.

Start With the Simple Checks

The key to bathtub overflow drain is choosing the right approach for your space and budget.

With a little planning, bathtub overflow drain can fit even a busy schedule.

Before you buy parts, check the easy stuff. Look at the cover plate. Is it loose? Are the screws rusty or missing? Tighten the screws gently. Do not crank them hard. Overtightening can crack an old plate or warp the seal.

Look at the caulk around the plate and where the tub meets the wall. Old, cracked caulk lets splash water into the wall. It is not the overflow gasket, but it leaks in the same area and is easy to fix. Scrape out the old caulk and lay a fresh bead of bathroom silicone. Let it cure fully before you use the tub.

If the plate is tight and the caulk is fine but the leak continues, the gasket behind the tub is the likely problem. Time to replace it.

What You Will Need

With a little planning, bathtub overflow drain can fit even a busy schedule.

Before you start, it helps to understand how bathtub overflow drain works in real homes.

• A replacement overflow gasket (rubber or foam, matched to your tub)
• Screwdriver that fits the plate screws
• Needle-nose pliers or a small pick
• Rag and rubbing alcohol
• Plumber's putty or 100 percent silicone (optional backup)
• Flashlight

Overflow gaskets come in a few shapes. The most common is beveled, thicker on one side and thinner on the other. This shape matches the slope of the tub wall. Foam gaskets are also common and squeeze into tight spots more easily. Bring the old gasket to the store if you can, so you match the size and shape.

Step 1: Remove the Cover Plate

Before you start, it helps to understand how bathtub overflow drain works in real homes.

A good plan for bathtub overflow drain saves time, money, and frustration.

Take out the one or two screws holding the cover plate. If your tub has a trip-lever stopper, the plate will be attached to a linkage rod. Pull the plate out slowly and the linkage comes with it. Note how the linkage sits so you can put it back the same way.

Set the plate and screws aside. Look at the plate itself. If it is corroded or cracked, replace it too. A new plate costs little and gives the new gasket a flat surface to seal against.

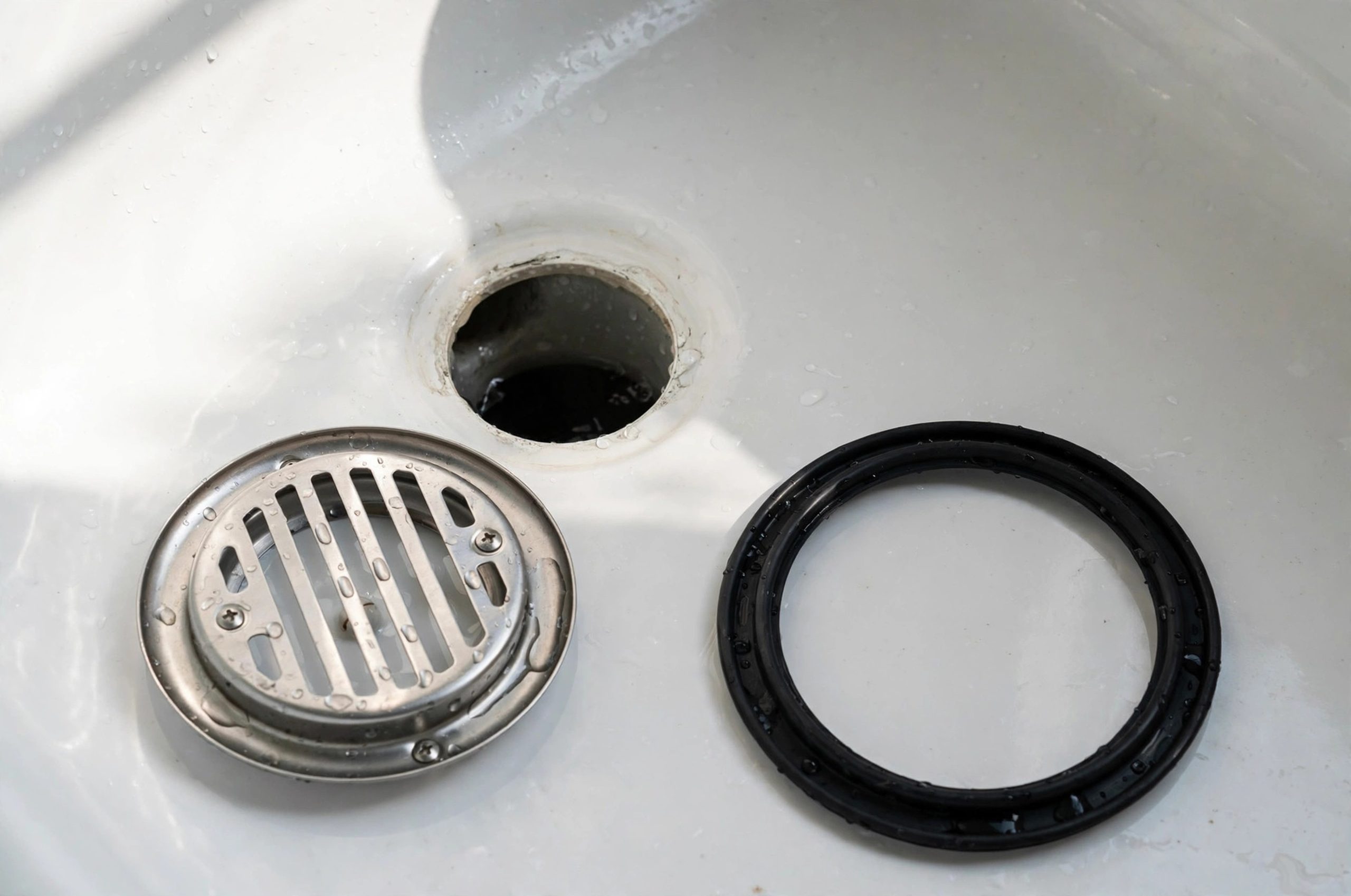

Step 2: Pull Out the Old Gasket

A good plan for bathtub overflow drain saves time, money, and frustration.

For most people, bathtub overflow drain comes down to a few smart choices.

Look into the overflow opening. You will see the old gasket around the pipe flange. It may be stuck to the tub or the pipe. Use the pliers or pick to pull it out gently. Take your time. Bits of old rubber left behind will keep the new gasket from sealing.

Clean the area well. Wipe the tub surface around the opening and the face of the overflow pipe with a rag dampened with rubbing alcohol. Get off all the soap scum, old caulk, and mineral crust. A clean surface is what makes the new seal hold. This step matters more than most people think, and it is stressed in the step-by-step overflow repair guides put out by repair pros.

Step 3: Fit the New Gasket

For most people, bathtub overflow drain comes down to a few smart choices.

If you are new to bathtub overflow drain, start with the simplest option and build from there.

Check the shape of the new gasket. If it is beveled, the thick side goes down, matching the slope of the tub wall. This gives even squeeze all the way around when the plate is tightened. Pros on the plumbing forums point to this as the most common mistake. A gasket flipped the wrong way leaves a gap at the top or bottom.

Press the gasket onto the overflow pipe flange from inside the opening. It should sit centered and flat. Some people add a thin smear of silicone to the gasket for extra insurance. That is fine on an older tub, though a good gasket on a clean surface usually seals without it. The Danco gasket instructions show the basic remove-and-replace order in three steps.

Step 4: Reinstall the Cover Plate

If you are new to bathtub overflow drain, start with the simplest option and build from there.

Set the cover plate back in place with the slots facing down. The slots must point down so water can flow in and air can flow out. If you removed a trip-lever linkage, feed it back down the overflow pipe first, then seat the plate.

Start both screws by hand so they catch straight. Then tighten them a little at a time, alternating from one to the other. This squeezes the gasket evenly. Stop when the plate is snug and flat against the tub. Overtightening will not seal better. It can crack the plate or distort the gasket.

Step 5: Test for Leaks

When it comes to bathtub overflow drain, getting the details right makes all the difference.

Fill the tub until water flows into the overflow. Let it run into the overflow for a few minutes. Then check below. Look at the ceiling under the tub, or open the access panel if you have one. Many tubs have an access panel in the wall of the next room or in a closet behind the bathroom. If you do not have one, look for damp spots and listen for dripping.

No leak means the job is done. If it still leaks, the problem may be deeper: a cracked overflow pipe, a bad slip-joint connection, or a failed shoe gasket at the bottom drain. Those fixes need access from below or behind, and they are a bigger job.

When the Pipe Itself Is the Problem

Many homeowners find that bathtub overflow drain is easier than they expected once they know the basics.

Sometimes the gasket is fine but the overflow pipe is cracked or the joint where it meets the drain tee has failed. You will usually need to open the wall or ceiling to reach it. Look for an access panel first. If there is none, cutting a small inspection hole in the drywall behind the tub is the usual route. Patch it after.

If the drain assembly is old and corroded in several spots, replacing the whole waste and overflow unit makes sense. It is more work, but it fixes every seal at once. A guide to tub-to-shower conversions can help you weigh a full replacement if the tub is due for bigger changes. For a simple gasket swap, though, most handy homeowners do fine on their own.

Preventing Future Overflow Leaks

The key to bathtub overflow drain is choosing the right approach for your space and budget.

Do not make a habit of filling the tub to the brim. The overflow is a safety device, not a normal water path. Running water through it every bath wears the gasket faster.

Check the cover plate screws once a year. They can work loose with vibration and temperature changes. A quick snug-up takes seconds. Keep the caulk around the tub in good shape. Water that never gets behind the tub never finds a weak gasket.

If your bathroom is due for a remodel, consider the whole wet area. A walk-in shower kit removes the overflow problem entirely, and a freestanding tub faucet changes how the tub fills. For basement baths, read up on plumbing costs before you plan.

Frequently Asked Questions

Can I just caulk around the overflow plate instead of replacing the gasket?

Caulk on the outside helps with splash water, but it cannot fix a failed gasket behind the tub. Water will still pass the bad seal inside the wall. Replace the gasket.

Should I use plumber's putty or silicone on the gasket?

A thin layer of 100 percent silicone is the common backup on older tubs. Plumber's putty also works. Neither replaces the gasket itself. They just help it seal.

How do I know which way the beveled gasket goes?

Thick side down. The tub wall slopes, so the gasket needs more material at the bottom to squeeze evenly. If it looks symmetrical, it is not beveled and direction does not matter.

The space behind my tub is too tight to fit the new gasket. What now?

Try a foam gasket instead of rubber. Foam squeezes into tight gaps more easily. A little liquid soap on the gasket helps it slide in. If the pipe has no play at all, you may need to loosen the drain tee nut from below to gain room.

When should I call a plumber?

Call one if the overflow pipe is cracked, if joints below the tub leak, or if you have no access and do not want to open the wall yourself. Water damage spreads fast, so do not wait if the leak is active.

Where to Learn More

Plumbers swapping stories about tub overflow leaks confirm the gasket is the culprit in most cases. A separate thread on fixing bathtub drain leaks covers the shoe gasket at the bottom drain too. On the Plbg forums, pros discuss foam versus rubber gaskets for tight fits. The DoItYourself community has a long thread on tracking down the exact leak source. And this overflow installation guide shows how the whole waste and overflow assembly goes together. Once you try it, bathtub overflow drain gets easier each time.

References

Danco. (n.d.). Waste and overflow gasket instructions/assembly (No. 88350). Manuals.Plus. https://manuals.plus/m/46cb46f19328aece90d6f7a768c558f0b847c6aa6049e78813fd1946d3c30af7_doc

DoItYourself.com Forums. (n.d.). Tub overflow water leak. https://www.doityourself.com/forum/plumbing-piping/227633-tub-overflow-water-leak.html

Engineer Fix. (n.d.). How to fix a leaking overflow tub drain. https://engineerfix.com/how-to-fix-a-leaking-overflow-tub-drain/

Plbg.com Forums. (n.d.). Replacing overflow bathtub gasket. https://www.plbg.com/forum/read.php?1,445564

Superior Plumbing. (n.d.). Installing new tub drain and overflow. https://superiorplumbing.ca/drain-line-installation/installing-new-tub-drain-and-overflow/

Terry Love Forums. (n.d.). Fixing bathtub drain leak. https://terrylove.com/forums/index.php?threads/fixing-bathtub-drain-leak.40352/

Terry Love Forums. (n.d.). Leak from overflow gasket on tub drain. https://terrylove.com/forums/index.php?threads/leak-from-overflow-gasket-on-tub-drain.33073/

Terry Love Forums. (n.d.). Tub overflow leaking need suggestions. https://terrylove.com/forums/index.php?threads/tub-overflow-leaking-need-suggestions.71942/
